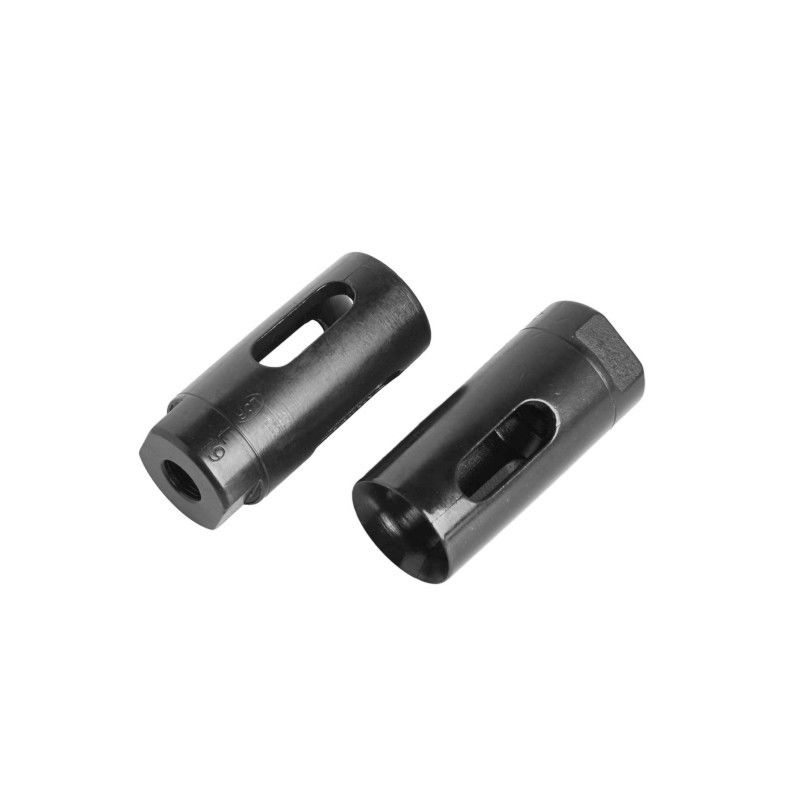

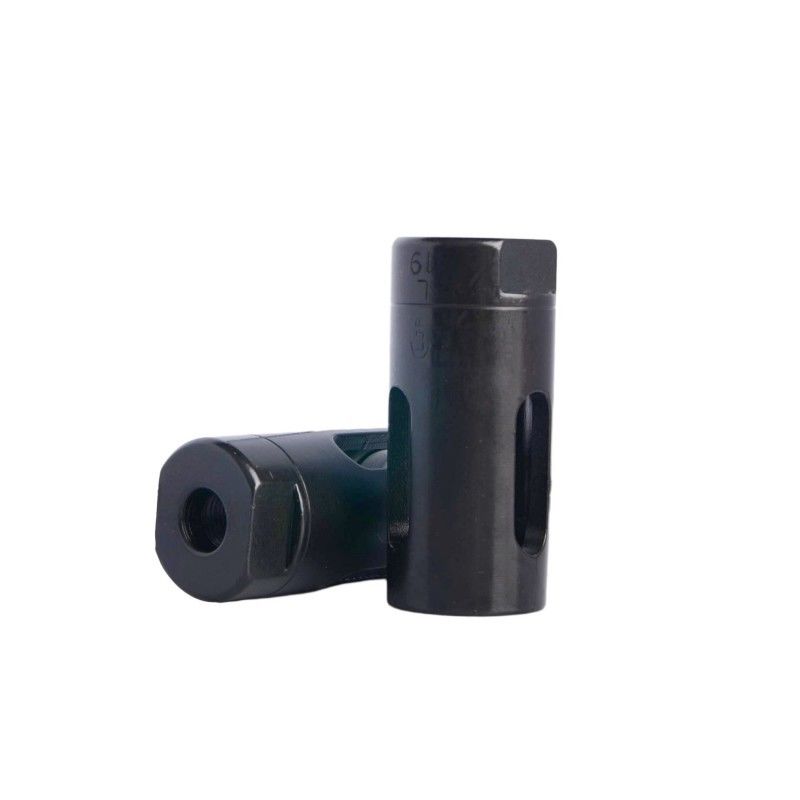

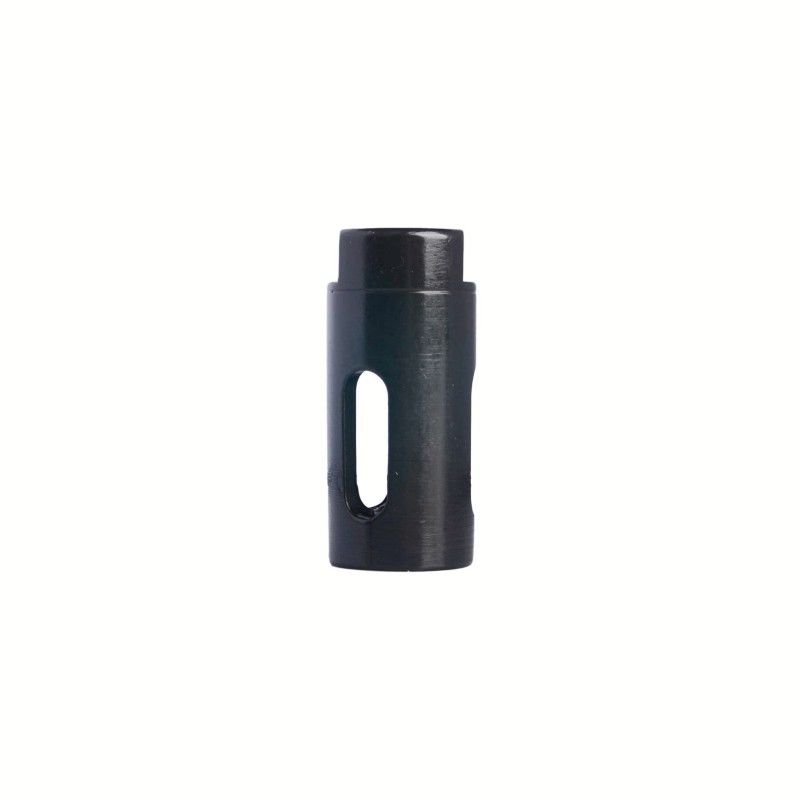

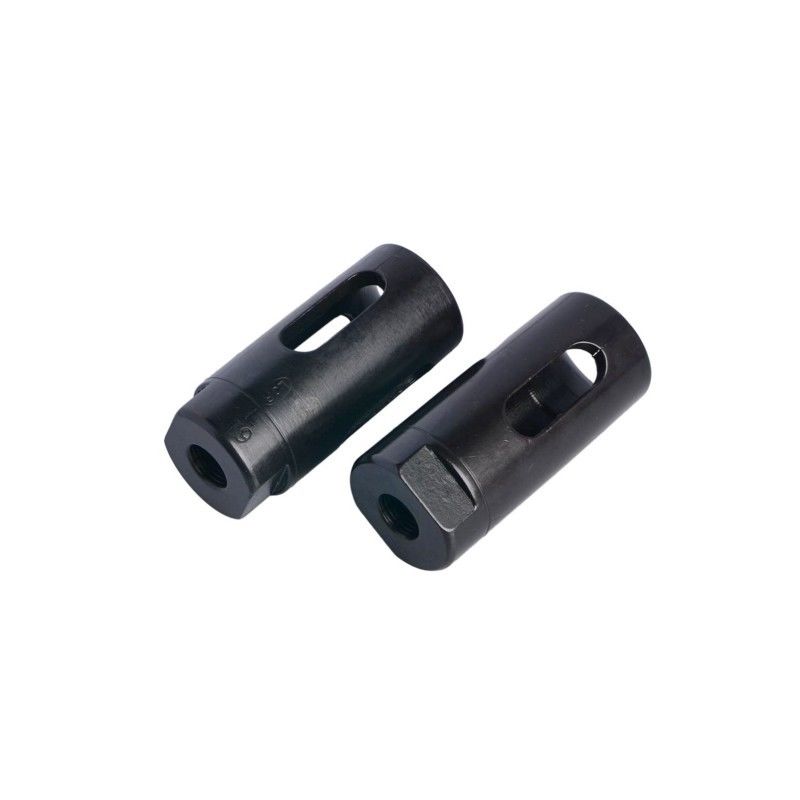

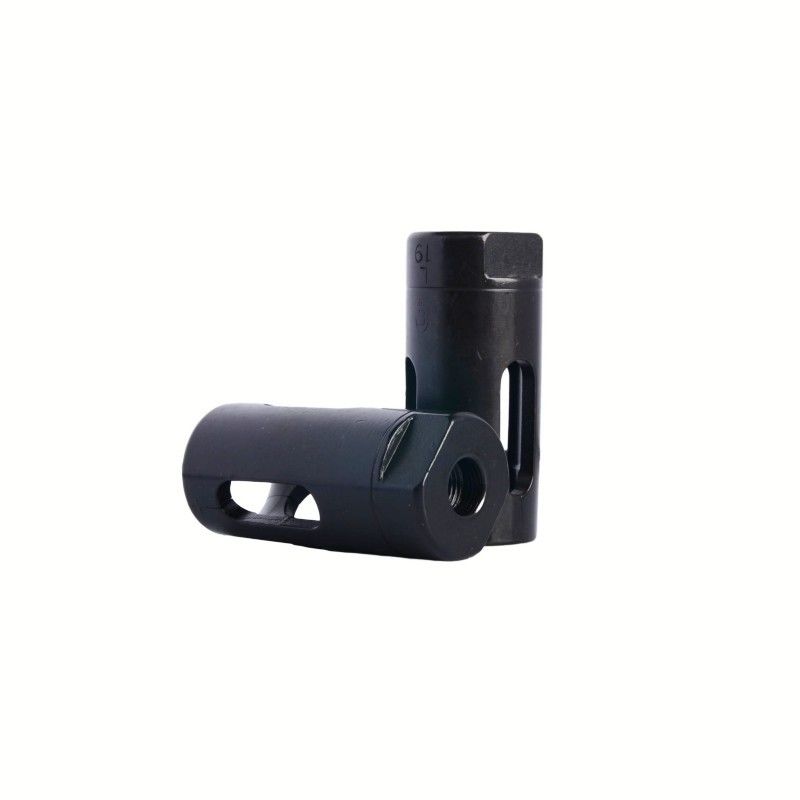

M25P1.5 IEMCA Barfeeder Finger Chuck Voor Zwitserse CNC-draaien
IEMCA Finger Chuck/ Barfeed Collet
| Model | Identificatie | Overdosis | L | Tandmeter | - Nee, dat is niet waar. |
| 4# | 0.8~4.0 mm | 5 mm | 98 mm | M4P0.7 | 1 |
| 5# | 2.0~4.0 mm | 5 mm | 37 mm | M4P0.5 | 2 |
| 4-7# | 0.8~4.0 mm | 7 mm | 98 mm | M4P0.7 | 3 |
| 4-7# | 4.1~6.0 mm | 7 mm | 98 mm | M4P0.7 | 3 |
| 4-7# | 2.0 tot en met 5,5 mm | 7 mm | 98 mm | M4P0.7 | 3 |
| 7.5# | 2.0~6.0 mm | 7.5 mm | 40 mm | M5P0.8 | 4 |
| 10# | 1.5·8.5 mm | 10 mm | 42 mm | M6P0.75 | 5 |
| 12# | 1.5 tot en met 10.5 mm | 12 mm | 42 mm | M7P0.75 | 6 |
| 15# | 2.0~13.0 mm | 15 mm | 42 mm | M8P1.0 | 7 |
| 16# | 12.0~14.0 mm | 16 mm | 42 mm | M8P1.0 | 7 |
| 20# | 3.0~18.5 mm | 20 mm | 60 mm | M10P1.0 | 8 |
| 23# | 16.0~21.0 mm | 23 mm | 60 mm | M10P1.0 | 9 |
| 25# | 16.5~23.0 mm | 25 mm | 60 mm | M10P1.0 | 10 |
| 27# | 16.5 tot en met 25.5 mm | 27 mm | 60 mm | M10P1.0 | 9 |
| 32# | 4.0 ~ 30.0 mm | 32 mm | 80 mm | M25P1.5 | 11 |
| 35# | 28.5 tot en met 32,0 mm | 35 mm | 80 mm | M25P1.5 | 12 |
| 37# | 31.0~34.0 mm | 37 mm | 80 mm | M25P1.5 | 13 |
| 38# | 31.0~35.0 mm | 38 mm | 80 mm | M25P1.5 | 13 |
| 40# | 21.0~36,5 mm | 40 mm | 80 mm | M25P1.5 | 13 |
| 42# | 31.5 tot en met 40,0 mm | 42 mm | 80 mm | M25P1.5 | 13 |
| 45# | 38.5 tot en met 42,2 mm | 45 mm | 80 mm | M25P1.5 | 13 |
| 51# | 42.5~48.0 mm | 51 mm | 80 mm | M25P1.5 | 14 |
