Plaats van herkomst:
Shenzhen.China
Merknaam:
Inrover
Certificering:
ISO9001
Contacteer ons

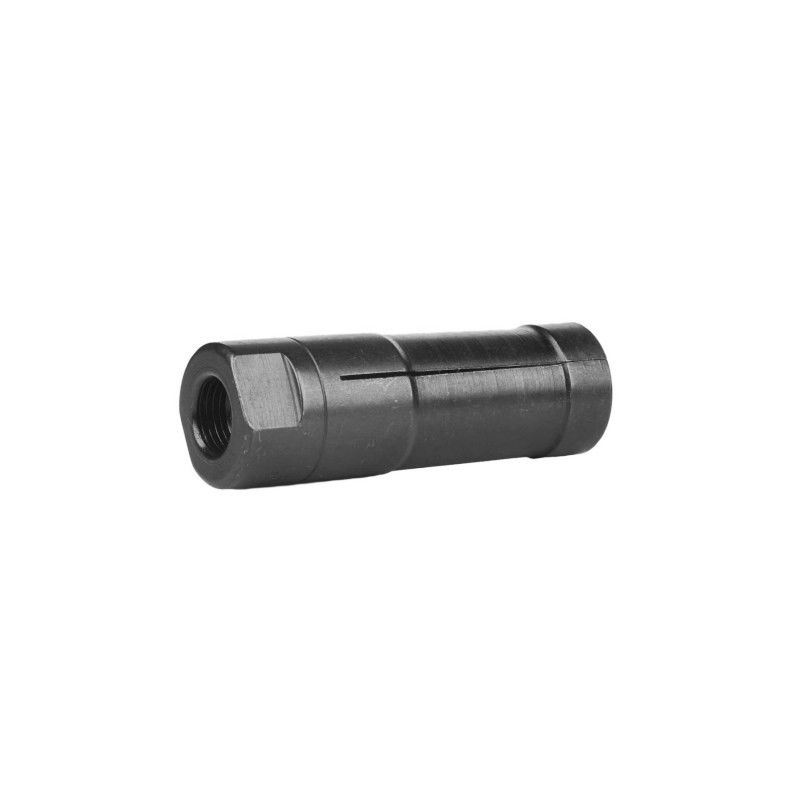

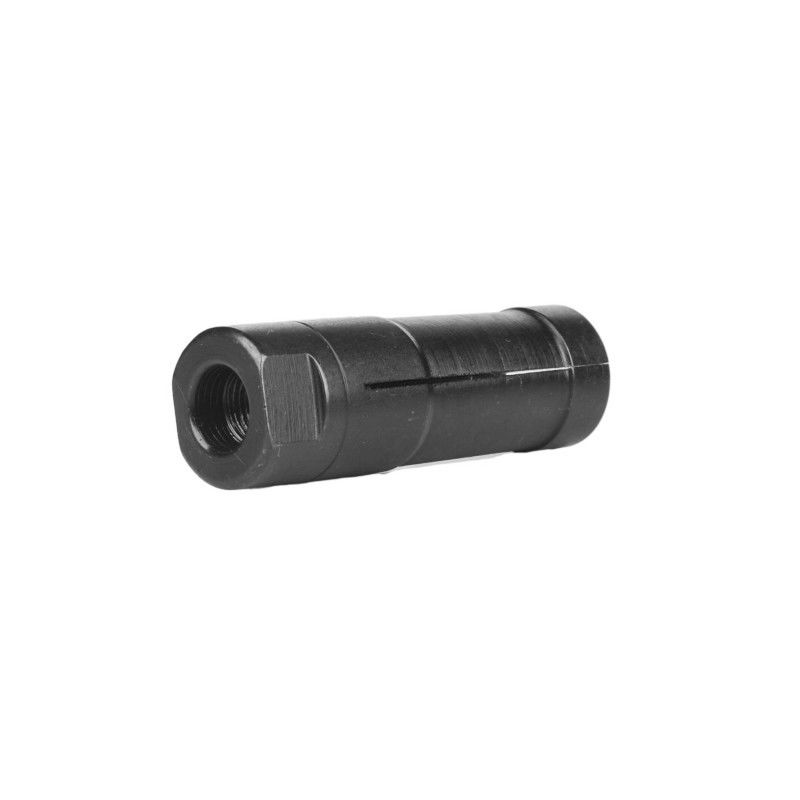

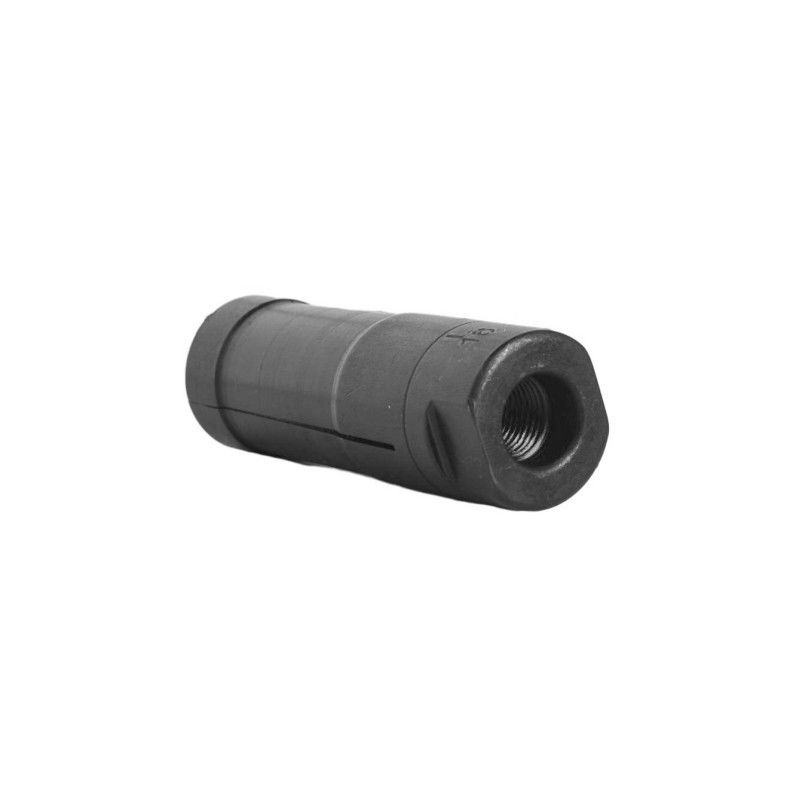

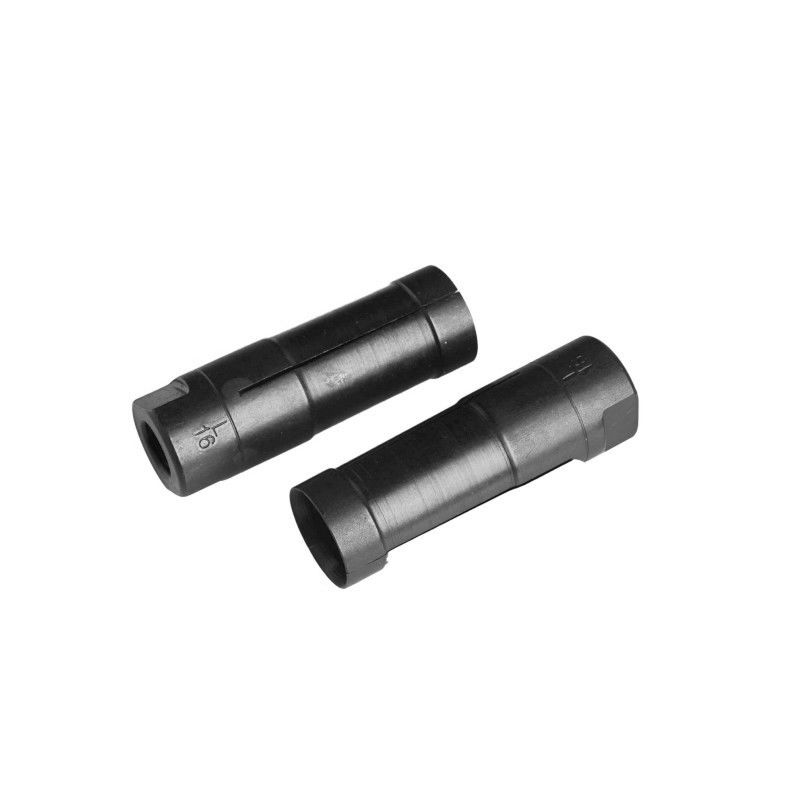

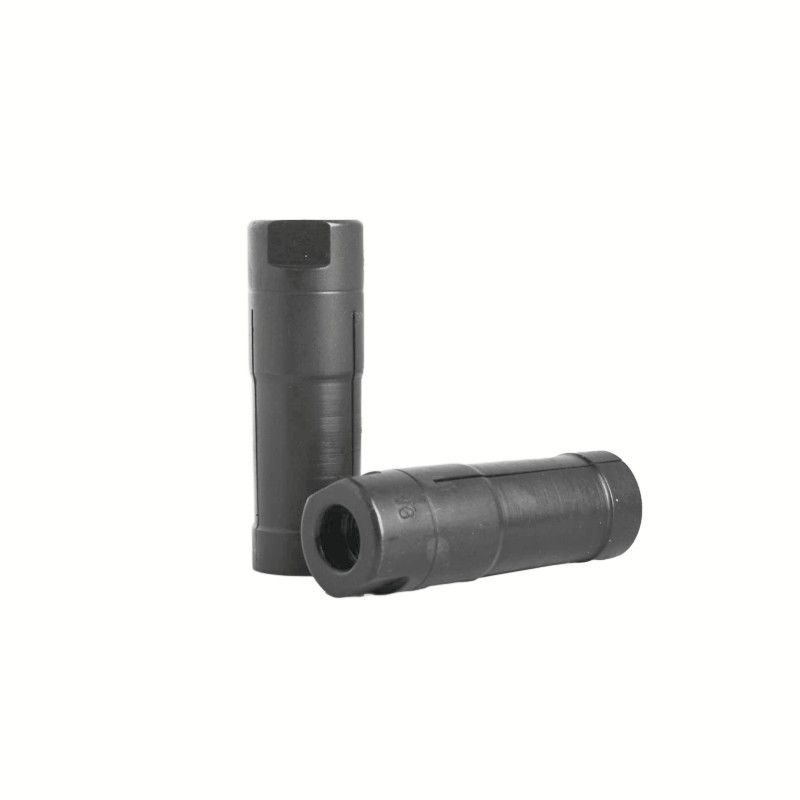

Zwitserse draaibank LENS Barfeed Collet M10P1.0 Standard Clamping Sleeve Voor draaibank
LNS Finger Chuck/ Barfeed Collet
| Model | Identificatie | Overdosis | L | Tandmeter | - Nee, dat is niet waar. |
| 4# | 0.8~4.0 mm | 5 mm | 98 mm | M4P0.7 | 1 |
| 4-7# | 0.8~4.0 mm | 7 mm | 98 mm | M4P0.7 | 2 |
| 4-7# | 4.1~6.0 mm | 7 mm | 98 mm | M4P0.7 | 2 |
| 4-7# | 2.0 tot en met 5,5 mm | 7 mm | 98 mm | M4P0.7 | 2 |
| 4# | 0.8~4.0 mm | 5 mm | 28 mm | M4P0.7 | 3 |
| 4-7# | 1.5 tot en met 6.0 mm | 7 mm | 28 mm | M4P0.7 | 4 |
| 7# | 1.3~6.0 mm | 7 mm | 50 mm | M4P0.7 | 5 |
| 7# | 1.3~6.5 mm | 8 mm | 50 mm | M4P0.7 | 5 |
| 7# | 6.6~7.0 mm | 9 mm | 50 mm | M4P0.7 | 5 |
| 8.5# | 1.5 tot en met 7.8 mm | 9.5 mm | 45 mm | M5P0.8 | 6 |
| 8.5# | 7.9~8.5 mm | 10 mm | 45 mm | M5P0.8 | 6 |
| 8.5# | 3.0~10,5 mm | 12 mm | 45 mm | M5P0.8 | 7 |
| 8.5# | 10.8~11.0 mm | 13 mm | 45 mm | M5P0.8 | 8 |
| 8.5# | 11.5 tot en met 12.0 mm | 14 mm | 45 mm | M5P0.8 | 8 |
| 8.5# | 12.5~13.0 mm | 15 mm | 45 mm | M5P0.8 | 8 |
| 8.5# | 13.5 mm | 15.5 mm | 45 mm | M5P0.8 | 8 |
| 20# | 2.5~13.0 mm | 15 mm | 60 mm | M9P1.0 | 9 |
| 20# | 11.5 ~ 15.1 mm | 18 mm | 60 mm | M9P1.0 | 10 |
| 20# | 15.2~16.0 mm | 19 mm | 60 mm | M9P1.0 | 10 |
| 20# | 16.5~18.0 mm | 20 mm | 60 mm | M9P1.0 | 10 |
| 20# | 18.5~19.0 mm | 22 mm | 60 mm | M9P1.0 | 11 |
| 20# | 19.5~21.0 mm | 24 mm | 60 mm | M9P1.0 | 11 |
| 20# | 21.5 tot en met 22.0 mm | 25 mm | 60 mm | M9P1.0 | 11 |
| XT326 | 18.0~19.5 mm | 22 mm | 60 mm | M9P1.0 | 12 |
| XT326 | 20.0~21.0 mm | 23 mm | 60 mm | M9P1.0 | 12 |
| XT326 | 21.5~23.0 mm | 26 mm | 60 mm | M9P1.0 | 12 |
| XT326 | 24.0 tot en met 26,0 mm | 28 mm | 60 mm | M9P1.0 | 12 |
| SN20# | 3.0~18.0 mm | 20 mm | 60 mm | M10P1.0 | 13 |
| SN25# | 16.5~23.0 mm | 25 mm | 60 mm | M10P1.0 | 14 |
| SN27# | 16.5 tot en met 25.0 mm | 27 mm | 60 mm | M10P1.0 | 14 |
| SN32# | 23.5 tot en met 28.0 mm | 32 mm | 60 mm | M17P1.0 | 15 |
